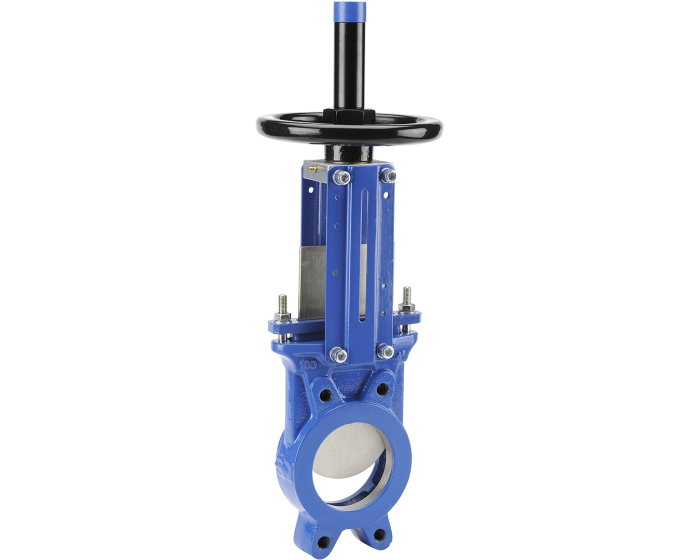

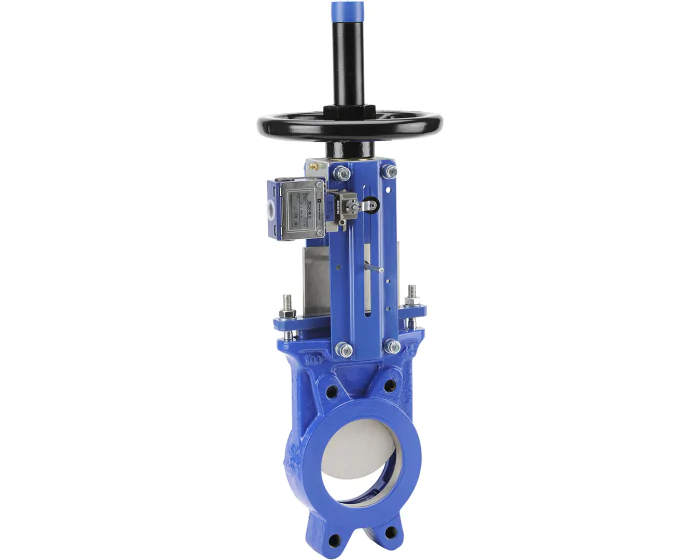

The 170 series unidirectional knife gate valve is made of cast iron with NBR seat, rising stem, lug type, PN10 flange connection. Several features available : non rising handwheel, quick lever, with limit switch.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Type of paint | Epoxy/polyester |
| Paint coating thickness (µm) | 150.00 |
| Tightness test standard | ISO 5208. Rate A |
| Opening device | Handwheel |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Stainless steel AISI 304 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 40.0 |
| Fluid | Abrasive fluids / Dirty water / Sludge |
| Body material | Cast iron |
| Number of sensors | 0 |
| Packing gland | Yes |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 |
| RAL (Paint) | 5005 |
| Seats | NBR |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rising |
| Main product colour | Blue |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Cast iron DN50 - 2'' Handwheel | 170050 | S1010129 |
€145.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN65 - 2''1/2 Handwheel | 170065 | S1010130 |
€156.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN80 - 3'' Handwheel | 170080 | S1010131 |
€163.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN80 - 3'' Lever | 170083 | S1010132 |
€264.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN100 - 4'' Handwheel | 170100 | S1010133 |
€180.86
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN100 - 4'' 1 Handwheel | 170101 | S1010134 |
€257.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN100 - 4'' Lever | 170103 | S1010135 |
€287.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN125 - 5'' Handwheel | 170125 | S1010136 |
€217.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN125 - 5'' 1 Handwheel | 170126 | S1010137 |
€296.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN125 - 5'' Lever | 170127 | S1010138 |
€351.03
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN150 - 6'' Handwheel | 170150 | S1010139 |
€247.63
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN150 - 6'' 1 Handwheel | 170151 | S1010140 |
€322.03
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN150 - 6'' Lever | 170153 | S1010141 |
€367.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN200 - 8'' Handwheel | 170200 | S1010142 |
€412.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN200 - 8'' 1 Handwheel | 170201 | S1010143 |
€483.04
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN250 - 10'' Handwheel | 170250 | S1010144 |
€523.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN250 - 10'' 1 Handwheel | 170251 | S1010145 |
€602.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN300 - 12'' Handwheel | 170300 | S1010146 |
€706.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN300 - 12'' 1 Handwheel | 170301 | S1010147 |
€776.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN350 - 14'' Handwheel | 170350 | S1010148 |
€1,244.74
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN350 - 14'' 1 Handwheel | 170351 | S1010149 |
€1,319.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN400 - 16'' Handwheel | 170400 | S1010150 |
€1,580.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN400 - 16'' 1 Handwheel | 170401 | S1010151 |
€1,659.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN450 - 18'' Handwheel | 170450 | S1010152 |
€2,106.47
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN450 - 18'' 1 Handwheel | 170451 | S1010153 |
€2,180.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN500 - 20'' Handwheel | 170500 | S1010154 |
€2,272.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN500 - 20'' 1 Handwheel | 170501 | S1010155 |
€2,348.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN600 - 24'' Handwheel | 170600 | S1010156 |
€3,617.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN600 - 24'' 1 Handwheel | 170601 | S1010157 |
€3,691.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN700 - 28'' Handwheel | 170700 | S1010158 |
€6,383.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN700 - 28'' 1 Handwheel | 170701 | S1010159 |
€6,457.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN800 - 32'' Handwheel | 170800 | S1010160 |
€7,457.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN800 - 32'' 1 Handwheel | 170801 | S1010161 |
€8,340.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Gears DN900 - 36'' | 170900 | S1010162 |
€13,715.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Gears DN1000 - 40'' | 170990 | S1010163 |
€18,424.16
(excl. btw)
|
add to cart |
